REDLINE DRS120D
| Product Name : | REDLINE DRS120D |
| Product Name : | Single Drum Roller |
| Operating Weight : | 11,400 kg |
| Gross Power : | 78 kW / 105 HP |
| Drum Width : | 2,130 mm. |
FEATURE & BENEFITS
Best-in-Class Compaction with Optimized Costs
Built for durability, the DRS 120 D boasts a robust drum shell and a high static linear load for superior compaction results. The patented Efficiency Eccentrics optimize fuel usage, reducing operational costs. Additionally, the advanced eccentric system reduces startup energy consumption by 50%, saving nearly 11 kW and cutting fuel usage significantly while minimizing wear and tear, even in challenging terrains.
Maximum Operating Hours with Superior Comfort
The optimized damper positioning, with two dampers located at the bottom and two behind the operator’s platform, eliminates vibrations and sudden jerks. This innovative design ensures zero vibration at the platform, providing unmatched operator comfort. With reduced fatigue, operators can work longer hours efficiently, maximizing productivity.
Clear Sightlines for Enhanced Operational Precision

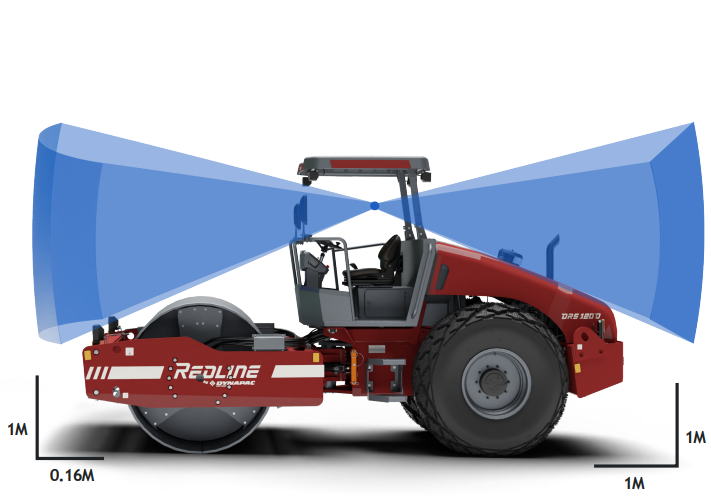

The compact design of the DRS 120 D enables operators to detect objects as small as 1 meter high from a distance of just 0.16 meters. This feature enhances workflow precision while ensuring exceptional safety. Whether working in confined spaces or challenging conditions, the DRS 120 D delivers superior performance, helping operators achieve outstanding results in their compacting endeavors.
The largest class lifting capacities in rough terrain cranes
A new rough terrain crane that boasts the world’s largest class hoisting capacity. Utilizing a compact three-axle carrier as a base, our new crane combines the capability of an all terrain crane with the ease of operation and secure functionality of a rough terrain crane. In addition, environmental consciousness, enhanced safety, and equipment designed to maximize work efficiency are all standard features of the new crane.
Product Specifications
| Operating weight | 11,400 kg |
| Max. operating mass with pad shells | 12,800 kg |
| Front module weight | 6,800 kg |
| Static linear load | 32 kg/cm |
| Drum width | 2,130 mm |
| Drum thickness | 25 mm |
| Amplitude (hi/low) | 1,8 / 0,9 mm |
| Frequency (hi/low) | 33 / 33 hz |
| Centrifugal force (hi/low) | 250/130 kN |
| Engine rated power @2200 rpm | 105 hp (79 kW) |
| Engine type | Dynapac |
