DRF25-60W
REDLINE DRF25-60W
| Operating Weight: | 17,500 kg |
| Gross Power: | 129 kW / 175 HP |
| Paver Width: | 2.55 – 6.7 m |
FEATURE & BENEFITS
High Performance Screeds
High quality results and easy and fast set up time.
The reliable and stiff 4 guiding tube principle ensures
unmatch screed stability. The output is high class roads
from 2.55 m up to 6.7m.
The ergonomic side shield and remote allow the
operator to stay fully focus for high end results.
The reliable and stiff 4 guiding tube principle ensures
unmatch screed stability. The output is high class roads
from 2.55 m up to 6.7m.
The ergonomic side shield and remote allow the
operator to stay fully focus for high end results.
![[web]GTC-600_HYDRAULIC QUICK COUPLING SYSTEM FOR TRACK MOTOR HYDRAULIC CONNECTIONS-01](https://italthaiindustrial.com/wp-content/uploads/2019/08/webGTC-600_HYDRAULIC-QUICK-COUPLING-SYSTEM-FOR-TRACK-MOTOR-HYDRAULIC-CONNECTIONS-01.jpg)
Outstanding traction & compact design with great maneuverability
-Ample traction due to smart rear wheel drive.
-The low profile tires give superior ground contact and
effective traction.
-Compact in design with 2.4m inner turning radius.
-Easy to transport with 17 degree ramp angle.
-The low profile tires give superior ground contact and
effective traction.
-Compact in design with 2.4m inner turning radius.
-Easy to transport with 17 degree ramp angle.
Homogeneous material flow
-Wide and long hopper for easy truck docking and high
capacity
-Low dumping height for flexible docking for different
lorry-sizes
-Independently operating hopper flaps
-Wide conveyor for smooth material flow up to 650 t/h
capacity
-Low dumping height for flexible docking for different
lorry-sizes
-Independently operating hopper flaps
-Wide conveyor for smooth material flow up to 650 t/h
Incomparably stable screed
-No supporting rods needed.
-Adjutable pilot bushings.
-Deep screed plate for great compaction performance.
-Efficient screed heating for fast heat up time.
-Adjutable pilot bushings.
-Deep screed plate for great compaction performance.
-Efficient screed heating for fast heat up time.
Excellent serviceability
-Easy access to maintenance points and inspection points
-Grouped components for convenient service
-Large fuel tank capacity
-Plug and play components
-Grouped components for convenient service
-Large fuel tank capacity
-Plug and play components
Best visibility & overview
– Spacious operator platform.
– Slidable operator dashboard.
– Easy & convenient position change.
– Dual seat concept.
– LED lights for night works.
– Slidable operator dashboard.
– Easy & convenient position change.
– Dual seat concept.
– LED lights for night works.

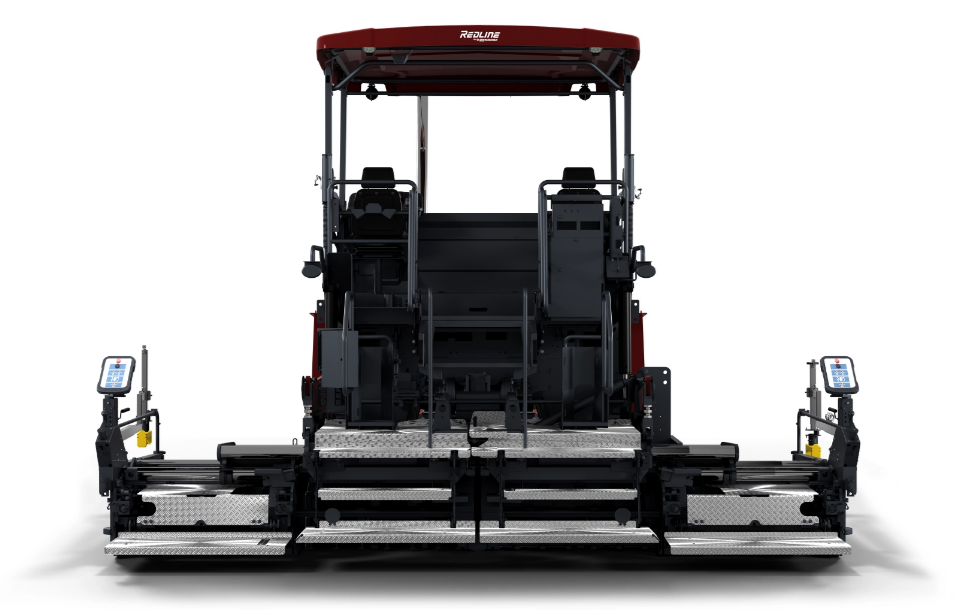

REDLINE DRF25-60W WHEELED ASPHALT PAVER
The REDLINE DRF25-60W is a wheeled asphalt paver designed to deliver flexible operation, high maneuverability, and consistent paving quality. The machine provides precise control over paving width and thickness, ensuring smooth and uniform asphalt surfaces that meet construction standards. Its wheeled drive system allows easy movement within confined areas while minimizing damage to existing pavement, making it ideal for urban job sites.
Recommended Applications Urban roads and secondary road paving Road maintenance and rehabilitation works Residential roads and housing developments Parking areas, industrial yards, and paved surfaces.
Product Specifications
| W x L x H | 3,000 x 6,100 x 3,100 mm |
| Engine model | Cummins QSB 6.7 – C173 |
| Theoretical placement capacity | 650 t/h |
| Placement thickness (max) | 300 mm |
| Maximum paving speed | 30 m/min |
| Max. paving level below zero | -100 mm |
| Hopper Capacity | 6 m³ |
| Tyre size | 445/80R25 |
| Front wheels | 4 x 560/300 – 390 |
| Wheel drive | 2 x rear wheels, 2 x front wheels |
| Heating system | Electric |
| Fuel tank capacity | 315 L |
